Gridwiz Mobility

Gridwiz SECC DC

  • Payment
    T/T
  • MOQ
    Negotiable
  • Country of sale
    World Wide
  • PRICE
    • EXW

      Depend on quantity

ITEM SPECIFICS

  • Brand
    Gridwiz Mobility
  • origin
    Republic of Korea
  • Size(Capacity)
    110 x 90 x 30 (W x L x H, mm)
  • Weight
    130g
  • Features
    Memory : 1Gb DDR3 SDRAM


PRODUCT DESCRIPTION

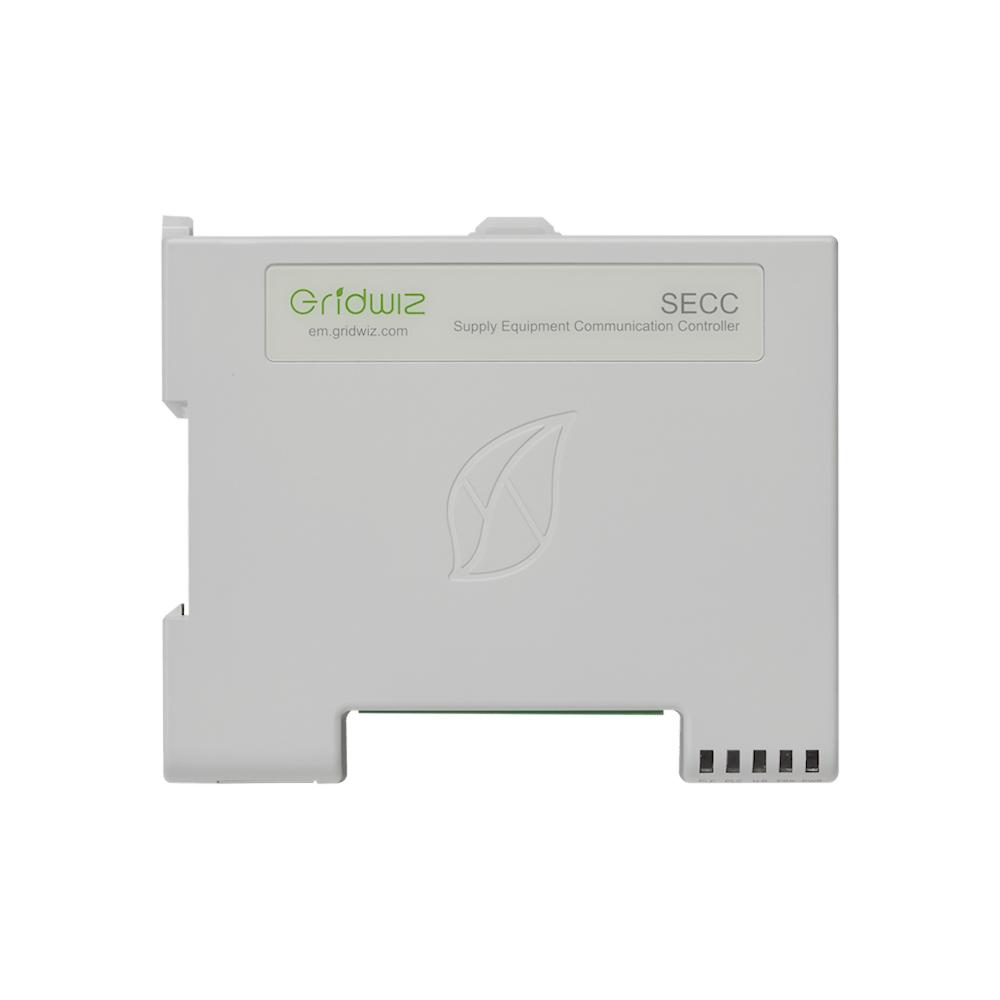

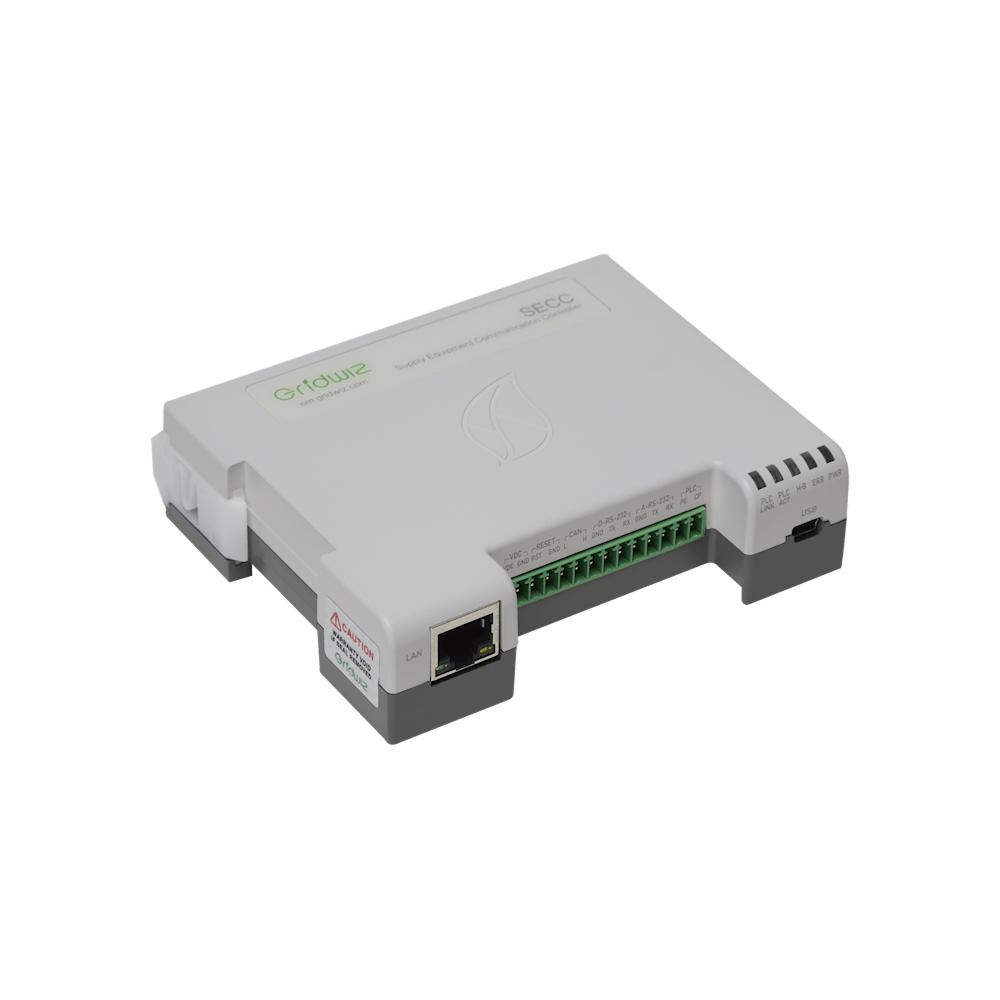

Gridwiz SECC DC



CCS modem for EV Charger

Gridwiz’s SECC DC is the world’s best-selling CCS modem, supporting a wide range of international standards including ISO 15118-2, ISO 15118-20, EIM, PnC, VAS, and OCPP.



ITEM Description
CPU Main processor ARM Cortex®-A8
Co-processor ARM Cortex®-M0
Memory 1Gb DDR3 SDRAM
Interface (EVSE) CAN: Baud Rate - 500k
CP-IN/OUT
- PWM Measurement (ADC): 20ms (±5%)
- Voltage Range: ±12V (±5%)
- Duty: 5% (±1%)
- Frequency: 1KHz (±0.5%)
PLC
- PSD of HPGP Signals: -75 dBm/Hz (±3dBm/Hz)
- VPP of HPGP Signals: 1.3V (±5%)
Interface (EVSE) Ethernet: 10/100M (RJ45)
RS-232: 2ports
USB: Mini-B Type
5 LED Indicators
Interfaces 1 x Ethernet: 10/100M (RJ45)
2 x RS-232: Application/ Debug
1 x USB: C Type
2 x LED Indicators: Power / PLC Link
PLC Technology HomePlug Green PHYTM (IEEE 1901 BPL)
Power consumption 3W (Max)
Input 8 ~ 30 VDC
Operating Temp. -40℃ ~ +85℃
Dimension 110 x 90 x 30 (W x L x H, mm)
Weight 130g
Materials ABS/PC (LUPOY)
Assembly DIN Rail (EN50022)
Certification KC, CE, FCC, REACH, RoHS



CCS Modem for DC EV Charger Hardware



Gridwiz SECC DC is the world’s most sold SECC (Supply Equipment Communication Controller), satisfying ISO 15118 and DIN SPEC 70121 Communication Standards.



Key Features

  • - HomePlug Green PHY (HPGP) 1.1/li>
  • - PWM Generation and Control Pilot Detection
  • - SLAC (Signal Level Attenuation Characterization) Transmissions
  • - DIN SPEC 70121
  • - ISO 15118-2 DC EIM & PnC
  • - ISO 15118-20 DC EIM & PnC
  • - Bidirectional Power Transfer Communication Support (V2G)
  • - VAS (Value Added Service) in accordance with ISO 15118, and VDV261
  • - OCPP1.6
  • - OCPP2.0.1
  • - Pantograph & ACD (Automatic Connection Devices)
