[EmoConnect PPG&Motion] Biosignal measurement equipment
-
Payment
P@yGOS(PayPal)
-
MOQ
Negotiable
-
Supply Details
Customization
-
Country of sale
Americas, Europe, Asia
-
PRICE
-
FOB
Depend on quantity
-
ITEM SPECIFICS
-
Brand
Model PPG&MotionEmoConnect
-
origin
Republic of Korea
-
Size(Capacity)
20.9mm(w) * 46.5mm(d) * 13.5mm(h)
PRODUCT DESCRIPTION

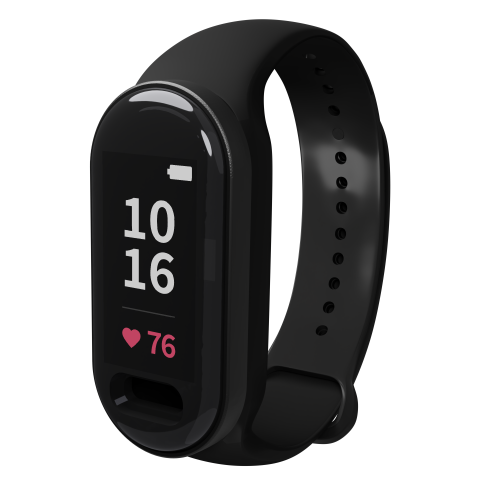

EmoConnect is a measuring device that can simultaneously monitor biosignals and movements.
EmoConnect - PPG&Motion is a measurement device that can simultaneously monitor a user's bio-signals and movements in real time, and its main purpose is to provide raw data to researchers and developers.
-
Photoplethysmography (PPG) sensor
-
Inertial Measurement Unit (IMU) sensor
It detects blood flow changes through PPG sensors and collects movement data through IMU sensors. This raw data can be used for various research and development purposes, and an SDK is provided so that researchers can 'customize' it.
(Supports Android operating system. iOS, Windows, and Linux operating systems will be provided in the future.)
EmoConnect Features
-
Bluetooth (Bluetooth v5.0 Compliant)
-

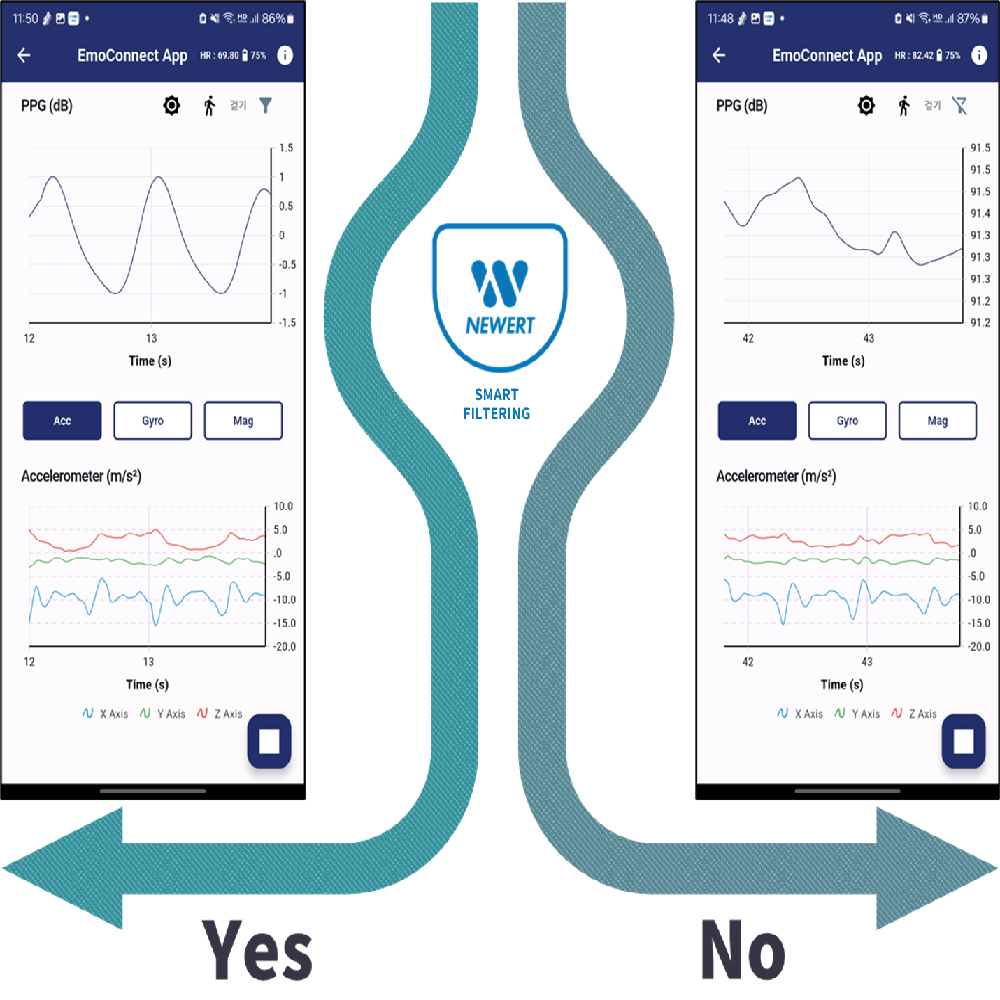

PPG data graph
-
IMU data graph
-
Storage and transmission of measurement data
Provides 10 types of biosignal data
EmoConnect - PPG&Motion provides 10 types of biosignal data.
-
PPG data
-
9-axis IMU
-
Acceleration (3 axis)
-
Gyro (3 axis)
-
Geomagnetism (3-axis)
-
Product Specifications ( Technical Specifications )
EmoConnect - PPG&Motion
| model name | EmoConnect - PPG&Motion |
| Measurement signal |
Macpa (PPG) - 1 channel Motion Sensor -> Accelerometer - 3 axis -> Gyroscope - 3 axis -> Magnetometer - 3-axis |
| Sampling frequency | Pulse wave (PPG): 50Hz Motion Sensor: 50Hz |
| Power Supply IC | USB-C type |
| Operating voltage | 3.3V |
| When using battery terminals | 3.3V ~ 5.5V |
| When using a C type terminal | 4.45V ~ 6.45V |
| External dimensions | 20.9mm(w) * 46.5mm(d) * 13.5mm(h) |
| weight | About 11g |
| Charging time (based on full discharge) | About 2 hours (based on 140mAh) |
| Operating time (continuous use) | About 9 hours (based on 140mAh, when used continuously) |
| Button | Electrostatic touch button, physical button for reset |
| Operating temperature | -40 ~ 85℃ |
| Communication method | Bluetooth v5.0 Compliant(BLE) |
notification
- PPG&MOTION is not a medical device and is not provided for medical diagnostic purposes. This board provides raw data collected by the sensor. This board is provided only for engineering development, demonstration, or user evaluation based on bio-signals, and is not provided in a finished product form suitable for general consumer use. Therefore, this board may not meet the technical requirements of directives such as KC, RoHS, etc. because the manufacturing-related protection considerations, such as essential product design including safety and environmental measures that must be provided in the final product, have not been completed.
